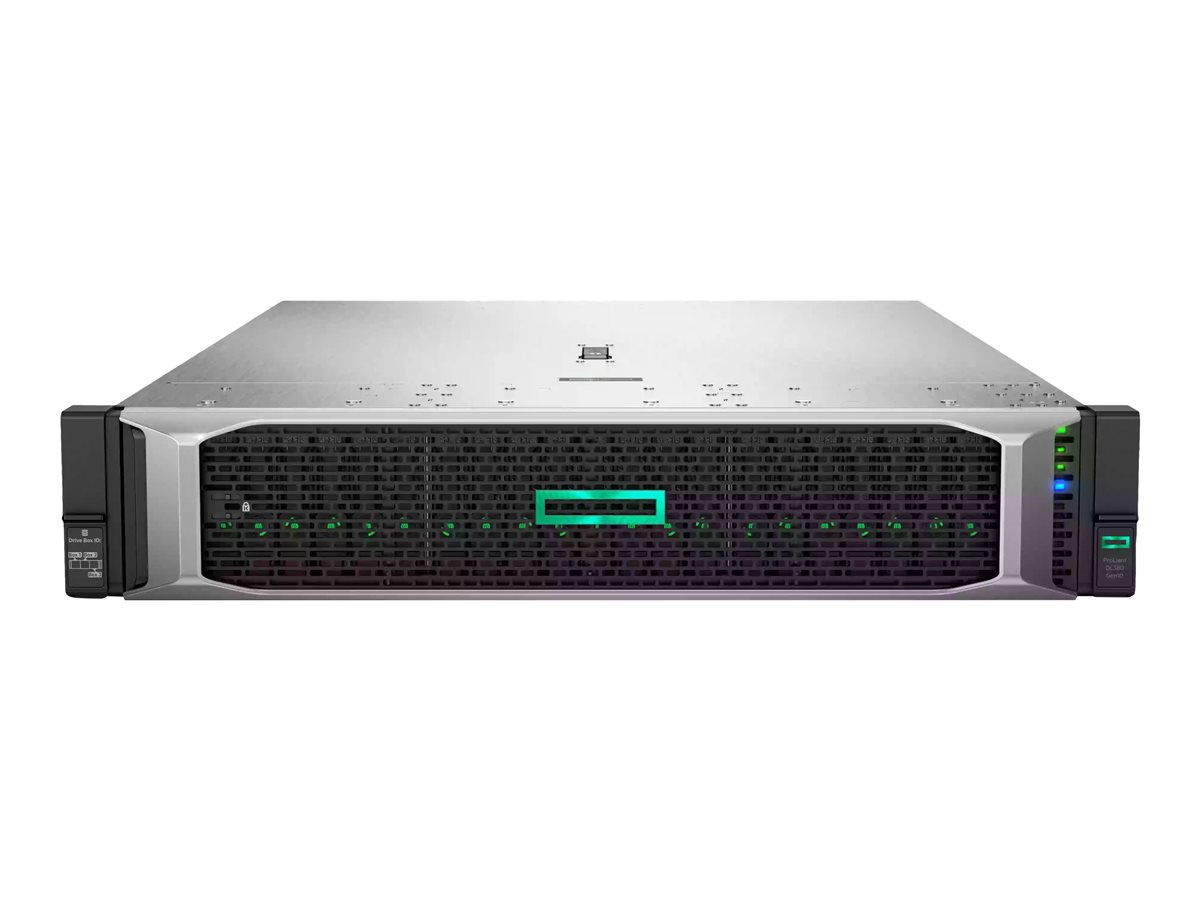

Hewlett Packard Enterprise - HPE ProLiant DL380 Gen10 Plus Network Choice
Server - rack-mountable 2U - 2-way - 1 x Xeon Silver 4314 / up to 3.4 GHz - RAM 32 GB - SATA/SAS - hot-swap 2.5" bay(s) - no HDD - 10 Gigabit Ethernet - no OS - monitor: none
Hewlett Packard Enterprise
P43358-B21
0190017512761
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL380 Gen10 Plus Network Choice - rack-mountable Xeon Silver 4314 2.4 GHz - 32 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Localization | Region: Worldwide |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Silver 4314 / 2.4 GHz (up to 3.4 GHz, (16-core) |
| Cache Memory | 24 MB |
| Cache Per Processor | 24 MB |
| RAM | 32 GB (installed) / 2 TB (max) - DDR4 SDRAM |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array P408i-a SR Gen10) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 10GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 44.54 cm x 71 cm x 8.75 cm |
| Weight | 16.12 kg |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: Worldwide |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode) |
| Interfaces | 1 x HPE iLO - RJ-45 ¦ 1 x USB 3.0 ¦ 1 x HPE iLO (service port) ¦ 2 x LAN (10Gigabit Ethernet) - SFP+ ¦ 1 x VGA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | 4 standard fans, CPU standard heatsink, HPE Easy Install Rails with CMA |
| Compliant Standards | AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2 |
| RAM | |
| Installed Size | 32 GB (installed) / 2 TB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2933 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 31 (empty) |
| Features | Registered, HP SmartMemory, 8-channel memory architecture, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 1 x 32 GB |
| RAM Supported | 8 TB Load-Reduced ¦ 2 TB registered ¦ 8 TB - HPE Persistent Memory - Optane DC Persistent |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57412 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 5 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | HPE Smart Array P408i-a SR Gen10 |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Buffer Size | 2 GB |
| Cache Memory | |
| Installed Size | 24 MB |
| Cache Per Processor | 24 MB |
| Optical Storage | |
| Type | No optical drive |
| Operating System / Software | |
| OS Provided | No operating system |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 44.54 cm |
| Depth | 71 cm |
| Height | 8.75 cm |
| Weight | 16.12 kg |
| Processor / Chipset | |
| CPU | Intel Xeon Silver 4314 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C621A |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
