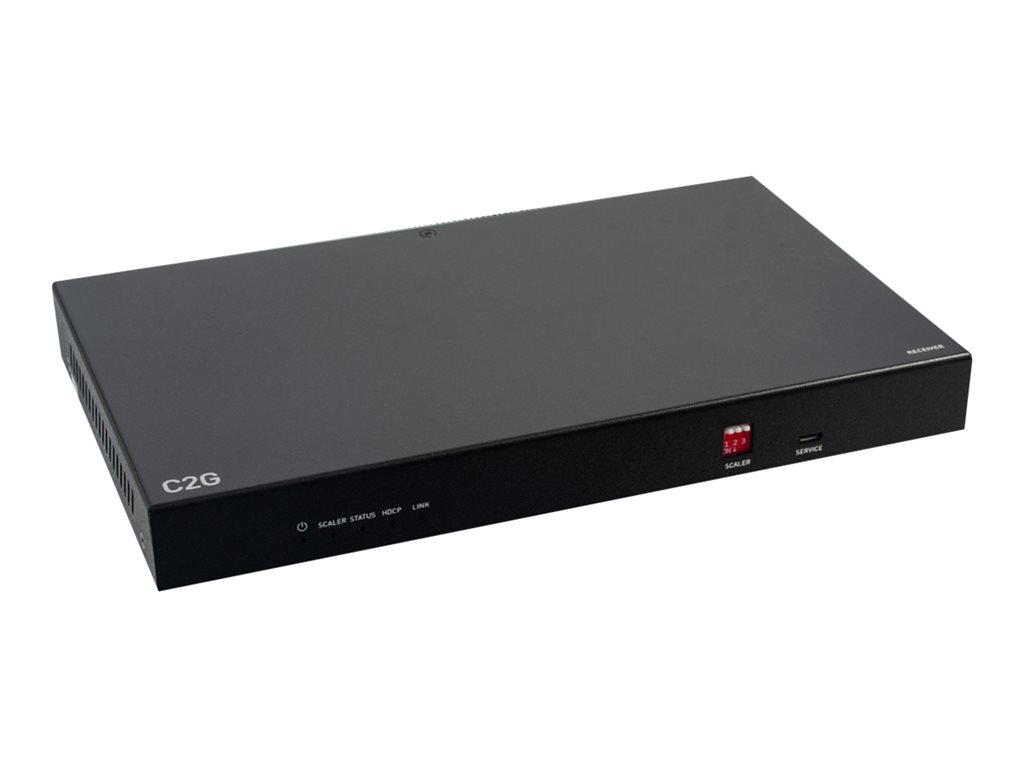

C2G - C2G HDMI + RS232 + IR 4K Scaling RX Box
Video/audio/serial extender - HDMI, HDBaseT - up to 70 m
C2G
C2G30016
0757120300168
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | C2G HDMI + RS232 + IR 4K Scaling RX Box - video/audio/serial extender - HDMI, HDBaseT |
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Data Transfer Rate | 10.2 Gbps |
| Data Link Protocol | HDMI, HDBaseT |
| Max Transfer Distance | 70 m |
| Power Over Ethernet (PoE) | PoC |
| Power | DC 12 V |
| Dimensions (WxDxH) | 10.88 cm x 6.42 cm x 1.5 cm |
| Weight | 180 g |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/serial extender |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x audio (output) - mini jack female ¦ 1 x audio (input) - mini jack female ¦ 1 x HDBaseT (output) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Max Transfer Distance | 70 m |
| Features | 7.1 channel audio support, 8KV ESD Protector, Dolby TrueHD support, DTS-HD Master Audio support, Dolby Atmos support, DTS:X support, IR pass-through |
| Compliant Standards | HDCP 2.2 |
| Power | |
| Power Over Ethernet (PoE) | PoC |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 10.88 cm |
| Depth | 6.42 cm |
| Height | 1.5 cm |
| Weight | 180 g |
