Sharp NEC Display Solutions - NEC MultiSync MA431-MPI4E
43" Diagonal Class MA Series LED-backlit LCD display - digital signage - with built-in SoC media player - 4K UHD (2160p) 3840 x 2160 - HDR - edge-lit - black
Sharp NEC Display Solutions
MA431-MPI4E
0805736075816
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | NEC MultiSync MA431-MPI4E MA Series - 43" LED-backlit LCD display - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display with built-in SoC media player |
| Diagonal Class | 43" |
| Commercial Use | Yes - digital signage |
| Color | Black |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| HDR Format | HDR10 |
| HDR Technology | Hybrid Log-Gamma (HLG), Perceptual Quantizer (PQ) |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| Connectivity | LAN |
| PC Interface | HDMI, DisplayPort |
| Technology | U-IPS |
| LCD Backlight Technology | Edge-lit LED local dimming |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | SNMP support, content management software (CMS) compatible |
| Picture Enhancements | Adaptive Contrast, DICOM Simulated Gamma, Wide Color Gamut, DCI 86% Color Space |
| USB | Yes |
| Included Accessories | Remote control, wireless remote control |
| Voltage | AC 100-240 V (50/60 Hz) |
| Energy Class | Class G |
| Power Consumption Operational | 70 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Energy Consumption per Year | 124 kWh |
| Dimensions (WxDxH) - without stand | 96.82 cm x 6.71 cm x 56.1 cm |
| Weight | 19 kg |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Energy Class | Class G |
| Energy Class (HDR) | Class G |
| Power Consumption (Max) | 235 Watt |
| Power Consumption Operational | 70 Watt |
| Power Consumption SDR (On mode) | 85 kWh/1000h |
| Power Consumption HDR (On mode) | 84 kWh/1000h |
| Energy Consumption per Year | 124 kWh |
| Diagonal Class | 43" |
| Commercial Use | Yes - digital signage |
| Combined With | Built-in SoC media player |
| Series | MA Series |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | Hybrid Log-Gamma (HLG), Perceptual Quantizer (PQ) |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS), temperature sensor |
| Video Interface | HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | HDMI, DisplayPort |
| Modes | Portrait mode, landscape mode, Eco mode |
| Picture Enhancements | Adaptive Contrast, DICOM Simulated Gamma, Wide Color Gamut, DCI 86% Color Space |
| Cooling System | Fan |
| Dimensions | Without stand |
| Width | 96.82 cm |
| Depth | 6.71 cm |
| Height | 56.1 cm |
| Weight | 19 kg |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Advanced Exchange Service - 3 years |
| Miscellaneous | |
| Security Slot Type | Kensington security slot |
| Included Accessories | Wireless remote control |
| Cables Included | HDMI cable - 2 m |
| Compliant Standards | FCC Class B certified, VCCI, BSMI, VESA DPMS, VESA FDMI, PSB, RoHS, KCC, CEC, KC, EAC, RCM, IP5X, CE/EMC, ISO 9241-307 Class 1, DisplayPort 1.4, IP2X, HDCP, TMDS |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by | 0.5 Watt |
| On / Off Switch | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Display | |
| LCD Display Technology | U-IPS |
| Pixel Pitch | 0.245 mm |
| Color Support | 1080000000 colors |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Edge-lit LED - local dimming |
| Coating | 28% haze, 4 mm tempered glass |
| Color Temperature | 3000 - 15000K |
| Image Contrast Ratio | 8000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 8 ms |
| Commercial Features | SNMP support, content management software (CMS) compatible |
| Operation Hours / Days | 24 / 7 |
| Additional Features | TileMatrix, Aspect ratio control (ARC), Crestron RoomView, security lock slot (cable lock sold separately), automatic alarm e-mails, Crestron Connected Compatible, 10-bit support, DICOM support, NaViSet Administrator 2, AMX NetLinx support, PJLink, SpectraView Engine support, designed for 24/7 operation, ASCII Control Commands, Display Browser Control, emergency notification, powered USB port, removable logo, CEC Support, Raspberry Pi Compute Module 4 Compatible, Consumer Electronics Control (CEC), scheduled timer, 6-axis Color Trim, powered USB port (10 W), disable HW buttons, disable IR functionality, 1% reflection rate, 97% light transmittance, HTTP Browser |
| Connections | |

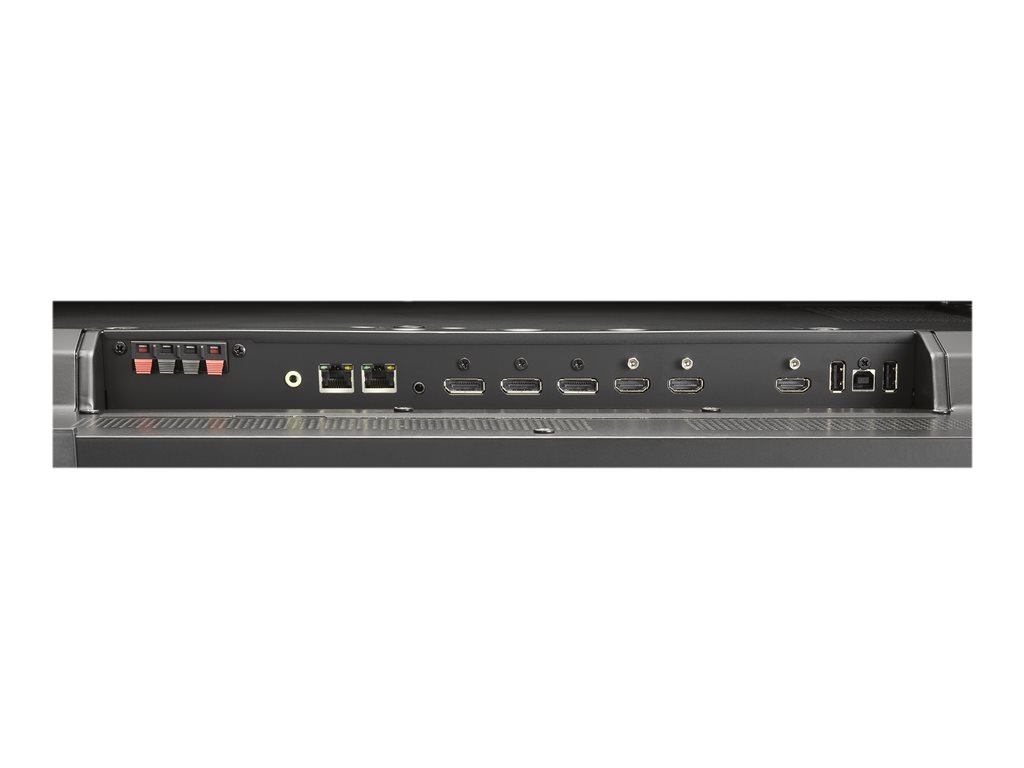

| Connector Type | 2 x HDMI input ¦ 2 x DisplayPort input ¦ LAN output ¦ LAN input ¦ Audio output ¦ Remote control input ¦ RS-232C input ¦ 2 x USB 2.0 ¦ USB upstream ¦ 2 x speakers output ¦ DisplayPort output ¦ HDMI output |
| Video Features | |
| Supported Computer Resolutions | 1366 x 768, 1920 x 1200 (WUXGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1280 x 720, 1360 x 768, 1920 x 1080, 1440 x 900, 1400 x 1050, 3840 x 2160, 4096 x 2160, 1920 x 2160, 2560 x 1440, 2560 x 1600, 7680 x 4320 |
| Remote Control | |
| Type | Remote control |
| Battery Form Factor | AAA type |
| Battery Included | Yes |
| Battery Included Qty | 2 |
| Battery Required Qty | 2 |
| Audio System | |
| Output Power / Total | 30 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 1.12 m |
| Depth (Shipping) | 20.3 cm |
| Height (Shipping) | 70 cm |
| Weight (Shipping) | 24 kg |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Fast Ethernet |
| Stands & Mounts | |
| Stand | Optional |
| Flat Panel Mount Interface | 300 x 300 mm |
| VESA Compatibility | Yes |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 1 |
