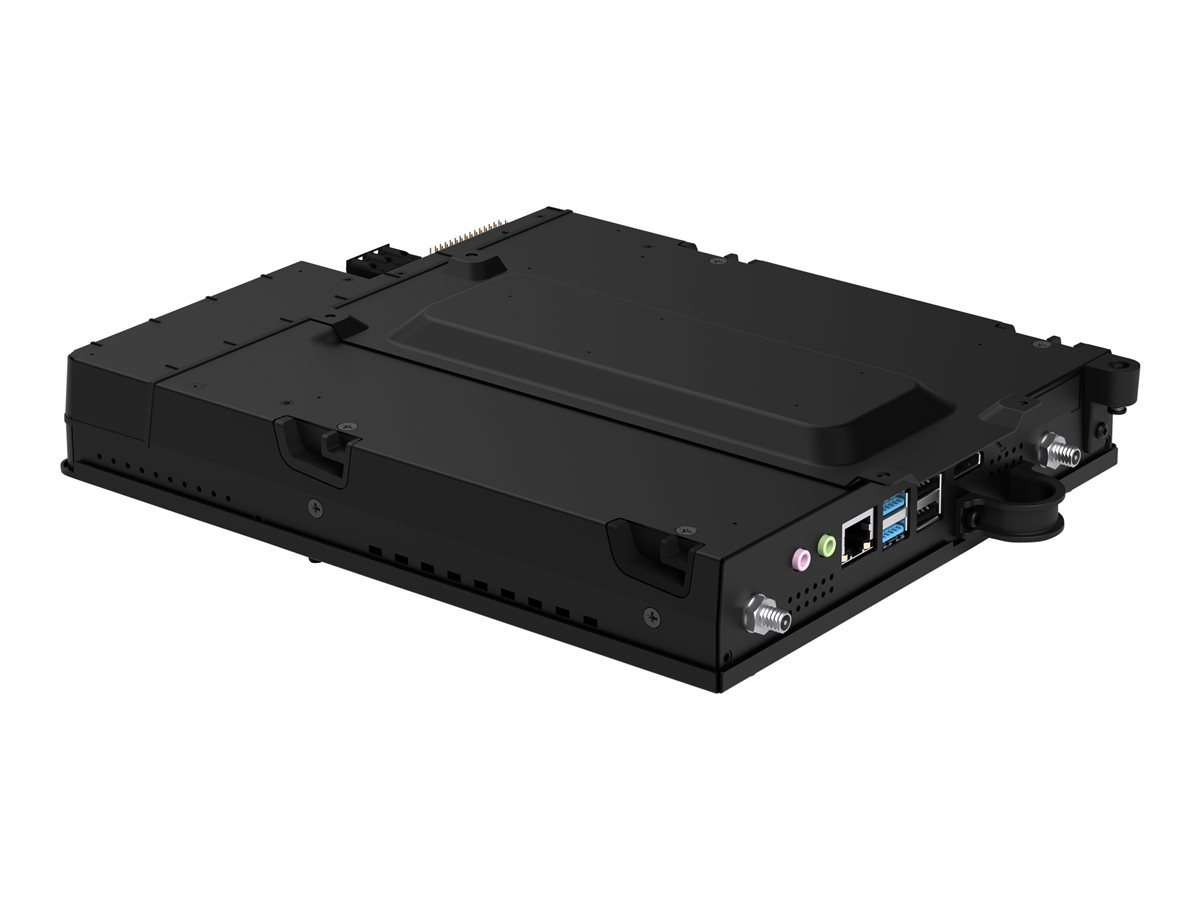

Elo Touch Solutions - Elo Computer Module ECMG4
Digital signage player - 16 GB RAM - Intel Core i5 - SSD - 256 GB - Windows 10 64-bit - black
Elo Touch Solutions
E405488
0843173128993
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Elo Computer Module ECMG4 - digital signage player |
| Device Type | Digital signage player |
| Dimensions (WxDxH) | 28.11 cm x 20.82 cm x 4.3 cm |
| Color | Black |
| Processor | Intel Core i5 i5-7500T 3.3 GHz Quad-Core x 1 |
| RAM | 16 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Graphics | Intel HD Graphics 630 |
| Hard Drive | 256 GB |
| Interfaces | USB 2.0, Gigabit Ethernet, USB 3.0, Bluetooth 5.0, Wi-Fi |
| OS Provided | Windows 10 64-bit Edition |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Digital signage player |
| Width | 28.11 cm |
| Depth | 20.82 cm |
| Height | 4.3 cm |
| Weight | 2.1 kg |
| Color | Black |
| OS Provided | Windows 10 64-bit Edition |
| Interfaces | USB 2.0, Gigabit Ethernet, USB 3.0, Bluetooth 5.0, IEEE 802.11a/b/g/n/ac |
| Key Features | Digital audio player, digital photo viewer, digital video player, Wi-Fi |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UL, VCCI, cUL, CB, FCC, AS/NZS |
| Processor | |
| Manufacturer | Intel |
| Type | Core i5 |
| Installed Qty | 1 |
| Processor Number | I5-7500T |
| Number of Cores | Quad-Core |
| Clock Speed | 3.3 GHz |
| RAM | |
| Technology | DDR4 SDRAM |
| Installed Size | 16 GB |
| Max Supported Size | 64 GB |
| Slots Qty | 2 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Connectivity | |

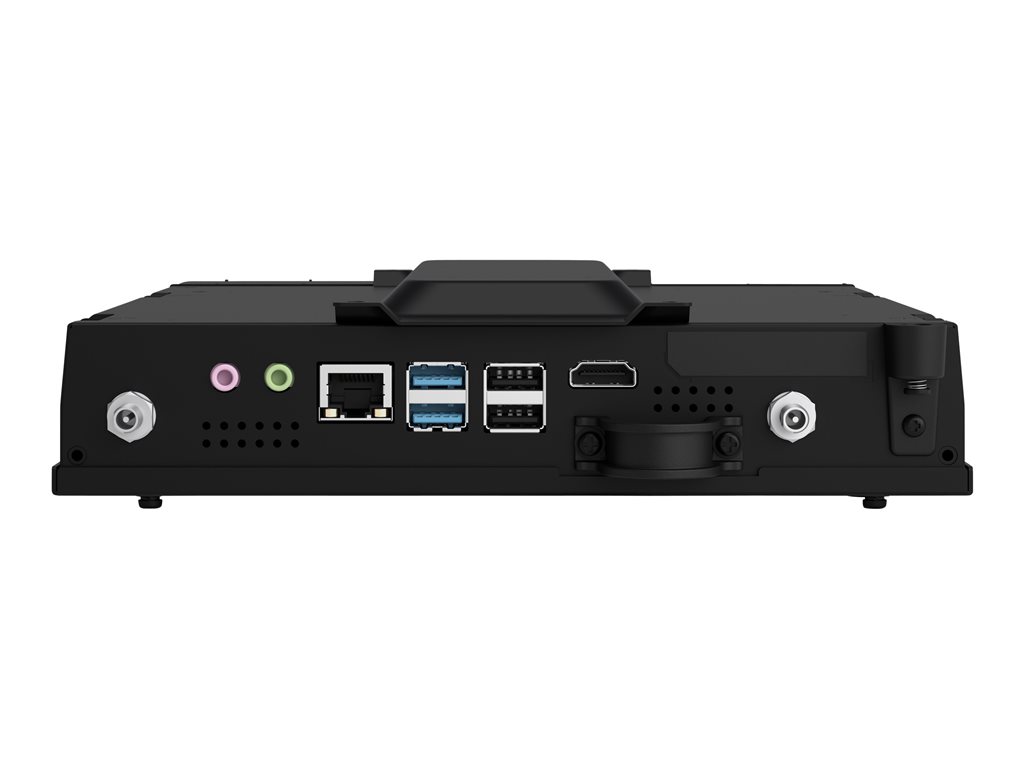

| Connections | HDMI ¦ 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ LAN (Gigabit Ethernet) ¦ Audio line-out - mini-jack ¦ Microphone - mini-jack |
| Video Output | |
| Graphics Processor | Intel HD Graphics 630 |
| Memory / Storage | |
| Storage Drive Capacity | 256 GB |
| Storage Drive Form Factor | M.2 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 73 cm |
| Shipping Depth | 52 cm |
| Shipping Height | 32 cm |
| Shipping Weight | 3.3 kg |
| Digital Storage | |
| Storage Drive Type | SSD |
| Capacity | 256 GB |
