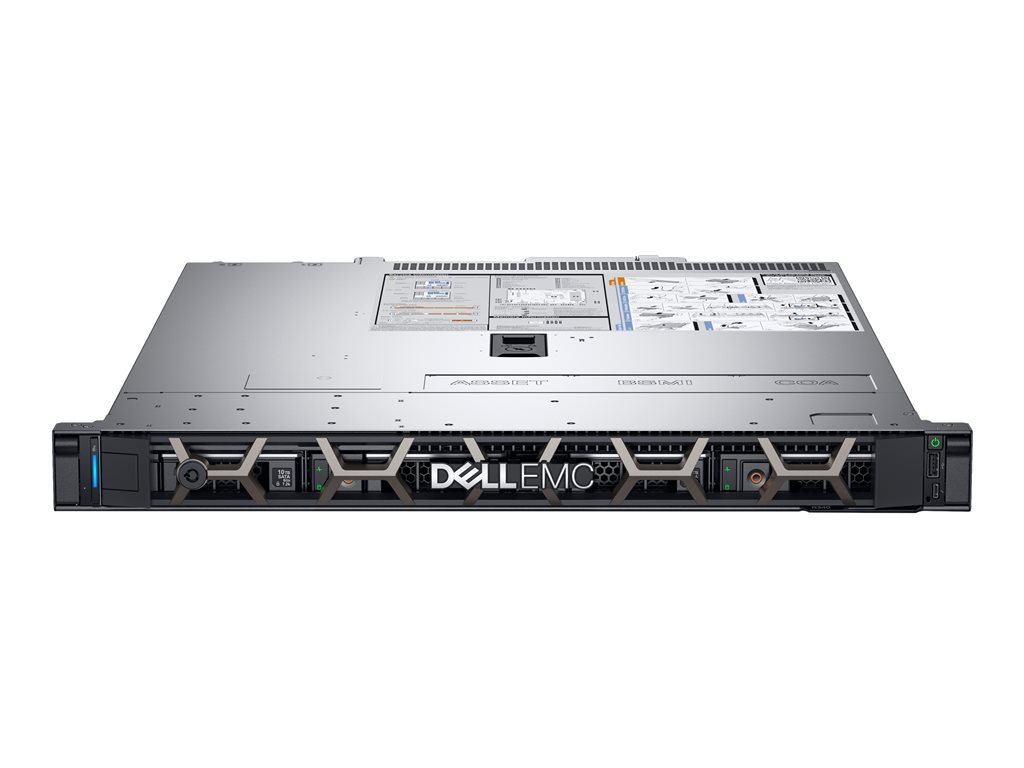

Dell - Dell PowerEdge R340
Server - rack-mountable - 1U - 1-way - 1 x Xeon E-2234 / 3.6 GHz - RAM 8 GB - SAS - hot-swap 3.5" bay(s) - HDD 1 TB - Matrox G200 - GigE - no OS - monitor: none - with 1-Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5x10 NBD On-site
Dell
XW2GG
0884116342915
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Dell PowerEdge R340 - rack-mountable - Xeon E-2234 3.6 GHz - 8 GB - HDD 1 TB |
| Type | Server - rack-mountable |
| Bundled Services | 1-Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5x10 NBD On-site |
| Height (Rack Units) | 1U |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon E-2234 / 3.6 GHz (4.8 GHz) (Quad-Core) |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | 8 MB |
| Cache Per Processor | 8 MB |
| RAM | 8 GB (installed) / 64 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (Dell PERC H330) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | HDD 1 TB (hot-swap) - SATA 6Gb/s - 7200 rpm |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200 |
| Video Memory | 16 MB |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 48.2 cm x 59.56 cm x 4.28 cm |
| Weight | 13.2 kg |
| General | |
| Type | Server |
| Bundled Services | 1-Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5x10 NBD On-site |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 4 |
| Expansion / Connectivity | |
| Bays | 4 (total) / 3 (free) x hot-swap 3.5" |
| Slots | 1 PCIe 3.0 x8 - half-length, full-height ¦ 1 PCIe 3.0 x4 - low-profile |
| Interfaces | 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x USB 2.0 - Type A (1 in front) ¦ 1 x VGA ¦ 1 x management - micro-USB (1 in front) (iDRAC Direct port) ¦ 2 x USB 3.0 - Type A ¦ 1 x serial ¦ 1 x management (iDRAC dedicated port) |
| Miscellaneous | |
| Included Accessories | Riser card |
| RAM | |
| Installed Size | 8 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Interface (Bus) Type | LAN-on-motherboard (LOM) |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Dell Remote Access Controller 9 Enterprise (iDRAC9) |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 350 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 80% |
| Storage Controller | |
| Type | 1 x RAID |
| Storage Controller Name | Dell PERC H330 |
| Cache Memory | |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Optical Storage | |
| Type | No optical drive |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Dell OpenManage Enterprise Advanced |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 1 x 1 TB |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Features | 512 native ( 512n ) |
| Dimensions & Weight | |
| Width | 48.2 cm |
| Depth | 59.56 cm |
| Height | 4.28 cm |
| Weight | 13.2 kg |
| Processor / Chipset | |
| CPU | Intel Xeon E-2234 |
| Clock Speed | 3.6 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2 |
