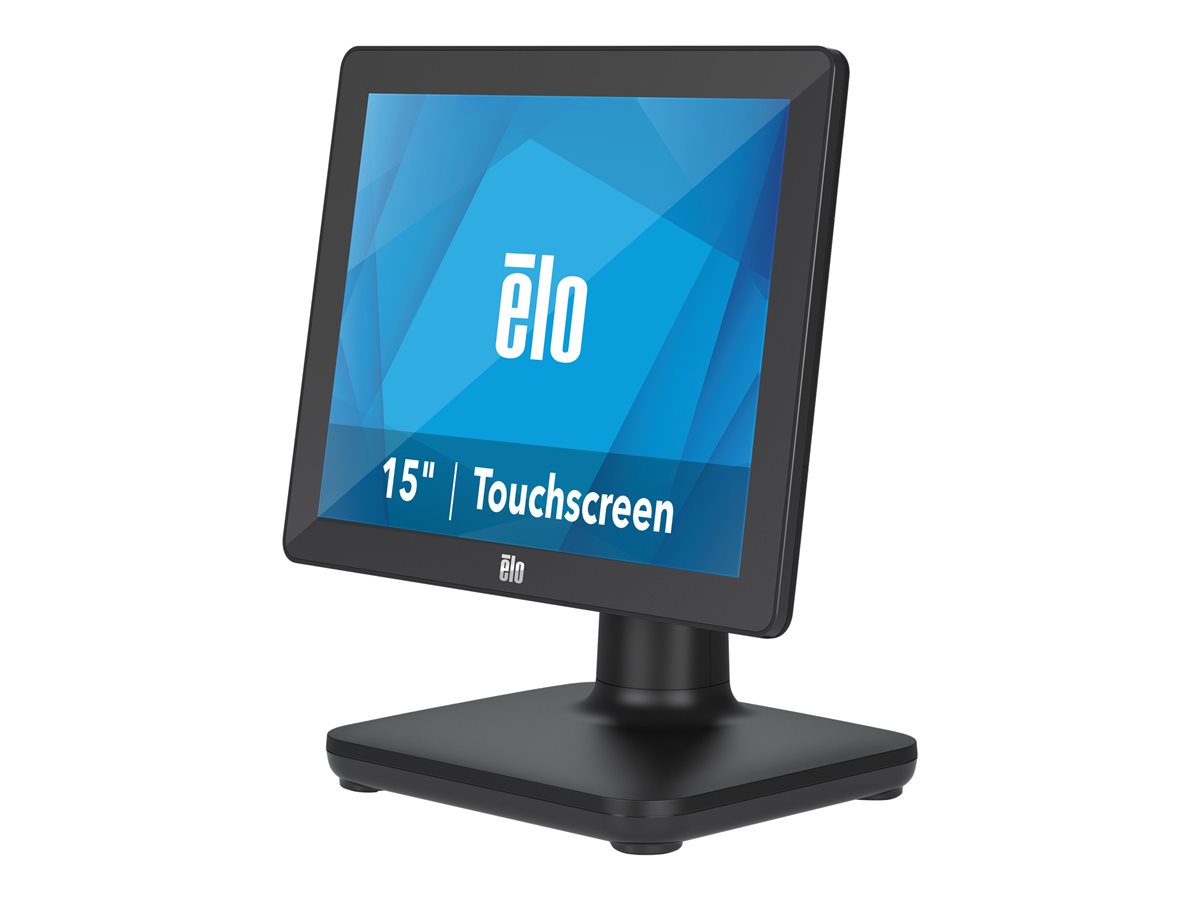

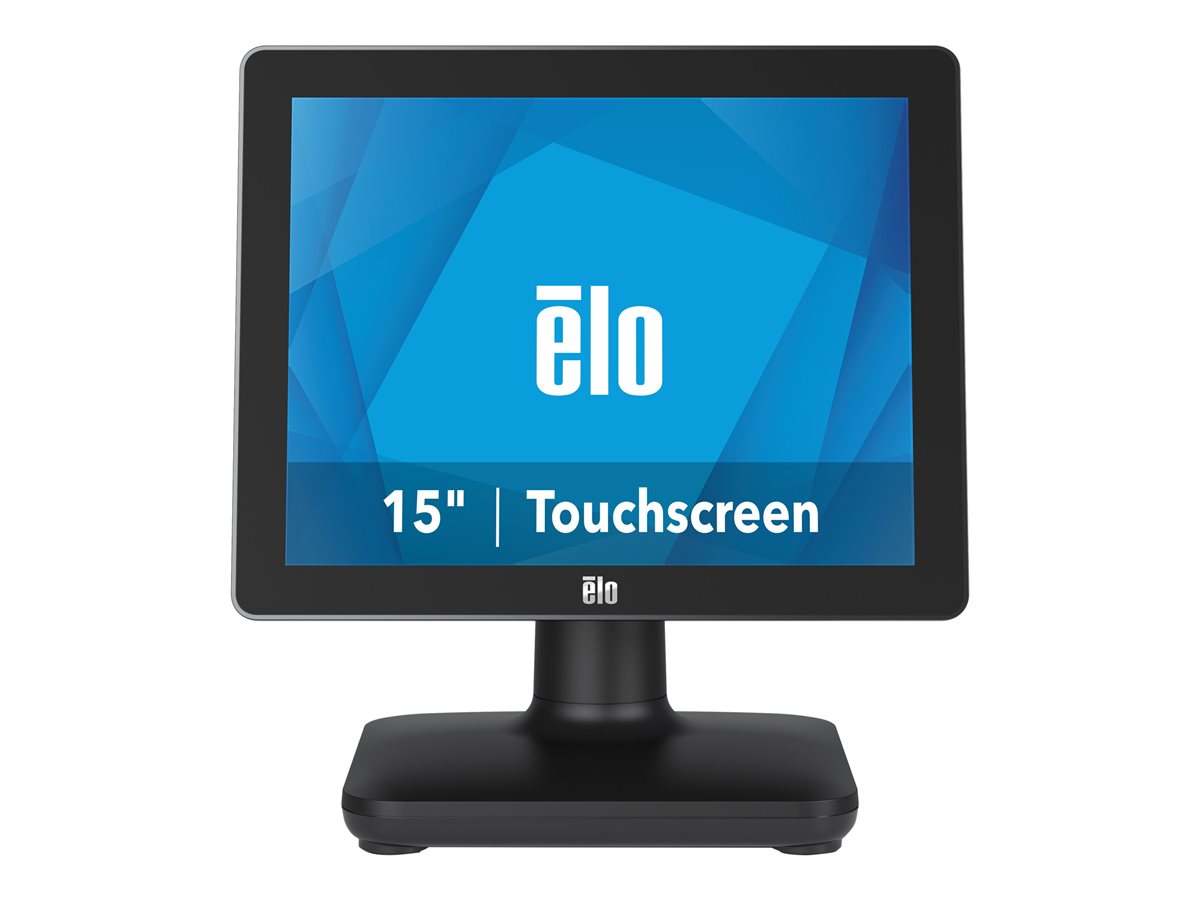

Elo Touch Solutions - EloPOS System i5
With I/O Hub Stand - all-in-one 1 x Core i5 8500T / up to 3.5 GHz - vPro - RAM 8 GB - SSD 128 GB - UHD Graphics 630 - Gigabit Ethernet - Win 10 IoT Enterprise LTSB 64-bit - monitor: LED 15" 1024 x 768 (XGA) touchscreen - black
Elo Touch Solutions
E932274
0843173115900
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | EloPOS System i5 - with I/O Hub Stand - all-in-one Core i5 8500T 2.1 GHz - vPro - 8 GB - SSD 128 GB - LED 15" |
| Type | Point of sale terminal - all-in-one |
| Platform Technology | Intel vPro Platform |
| Processor | 1 x Intel Core i5 (8th Gen) 8500T / 2.1 GHz (up to 3.5 GHz, (6-core) |
| Processor Socket | LGA1151 Socket |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache |
| Cache Memory | 9 MB |
| Cache Per Processor | 9 MB |
| RAM | 8 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 128 GB - SATA 6Gb/s - M.2 |
| Optical Storage | No optical drive |
| Monitor | 15" - LED - 1024 x 768 (XGA) - 4:3 - touchscreen |
| Graphics Controller | Intel UHD Graphics 630 |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.0 |
| Power | AC 120/230 V (50/60 Hz) |
| OS Provided | Windows 10 IoT Enterprise LTSB 64-bit Edition |
| Color | Black |
| Dimensions (WxDxH) | 35.97 cm x 22.13 cm x 39.04 cm |
| Weight | 5.3 kg |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Platform Technology | Intel vPro Platform |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Cable cover locking screw |
| Cables Included | RJ-45 to DB-9 cable |
| VESA Mounting Interface | 75 mm |
| Compliant Standards | UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, Mexico NOM |
| RAM | |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 8 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features | Intel Active Management Technology (AMT) 11 |
| Power | |
| Device Type | Power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Power Consumption Operational | 80 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 9 MB |
| Cache Per Processor | 9 MB |
| Optical Storage | |
| Type | No optical drive |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise LTSB 64-bit Edition |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 15" |
| Native Resolution | 1024 x 768 (XGA) |
| Widescreen Display | No |
| Image Aspect Ratio | 4:3 |
| Horizontal Viewing Angle | 160 |
| Vertical Viewing Angle | 160 |
| Response Time | 23 ms |
| Image Brightness | 340 cd/m² |
| Image Contrast Ratio | 800:1 |
| Monitor Features | Anti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 630 |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 128 GB |
| Interface Type | SATA 6Gb/s |
| SSD Endurance | 72 TB |
| Dimensions & Weight | |
| Dimensions & Weight Details | 35.97 cm - 22.13 cm - 39.04 cm - 5.3 kg - with stand |
| Width | 35.97 cm |
| Depth | 22.13 cm |
| Height | 39.04 cm |
| Weight | 5.3 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 45.5 cm |
| Shipping Depth | 37.2 cm |
| Shipping Height | 50.9 cm |
| Shipping Weight | 8.2 kg |
| Processor / Chipset | |
| CPU | Intel Core i5 (8th Gen) 8500T |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel Q370 |
