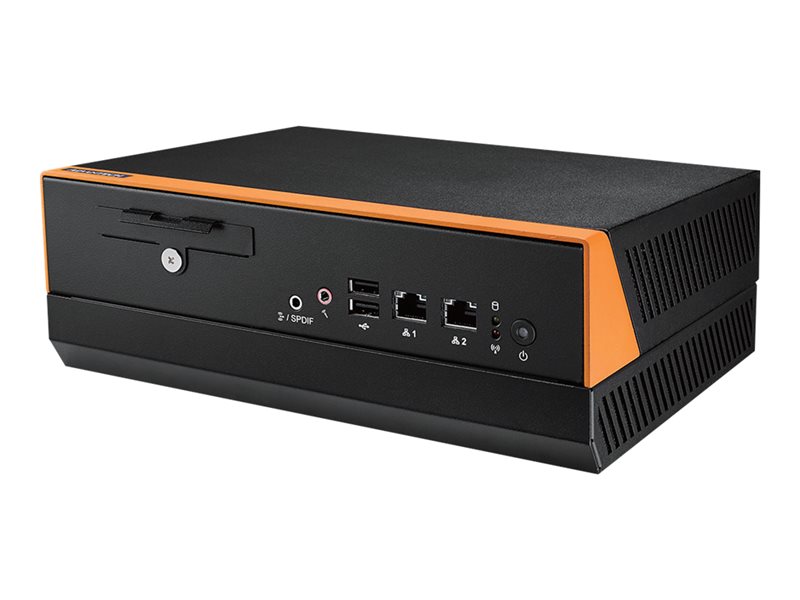

Advantech - Advantech DS-980
Expansion Configuration - digital signage player - 8 GB RAM - Intel Core i5 - HDD - 500 GB - no OS
Advantech
DS-980GF-U3A1E
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Advantech DS-980 - Expansion Configuration - digital signage player |
| Device Type | Digital signage player |
| Dimensions (WxDxH) | 19 cm x 25 cm x 8.8 cm |
| Processor | Intel Core i5 i5-6500TE x 1 |
| RAM | 8 GB (installed) / 32 GB (max) - DDR4 SDRAM |
| Graphics | Intel HD Graphics 530 |
| Hard Drive | 500 GB |
| Interfaces | USB 2.0, Gigabit Ethernet, serial, USB 3.0 |
| Video Playback Formats | MPEG-2, VC-1, H.264, VP8, WMV9, HEVC, VP9, H.265 |
| OS Provided | No operating system |
| General | |
| Device Type | Digital signage player |
| Width | 19 cm |
| Depth | 25 cm |
| Height | 8.8 cm |
| Weight | 3.6 kg |
| OS Provided | No operating system |
| Interfaces | USB 2.0, Gigabit Ethernet, serial, USB 3.0 |
| Key Features | Digital audio player, digital photo viewer, digital video player |
| Features | Mini-PCIe/mSATA full-size slot, RAID 0/1 support, M.2 slot (2230 key E for WIFI), SIM internal slot, PCIe x16 internal slot |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, BSMI, CB, CCC |
| Processor | |
| Manufacturer | Intel |
| Type | Core i5 |
| Installed Qty | 1 |
| Processor Number | I5-6500TE |
| RAM | |
| Form Factor | SO-DIMM 260-pin |
| Technology | DDR4 SDRAM |
| Installed Size | 8 GB |
| Max Supported Size | 32 GB |
| Slots Qty | 2 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Video | |
| Video Playback Formats | MPEG-2, VC-1, H.264, VP8, WMV9, HEVC, VP9, H.265 |
| Connectivity | |
| Connections | 3 x HDMI ¦ 4 x USB 3.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ Serial ¦ Microphone - mini-jack ¦ SPDIF output - mini-jack ¦ Audio line-out - mini-jack ¦ 2 x USB 2.0 |
| Power Device | |
| Power Source | AC power adapter |
| Output | 12 V |
| Video Output | |
| Graphics Processor | Intel HD Graphics 530 |
| Memory / Storage | |
| Storage Drive Capacity | 500 GB |
| Storage Drive Form Factor | 2.5" |
| Digital Storage | |
| Storage Drive Type | HDD |
| Capacity | 500 GB |
