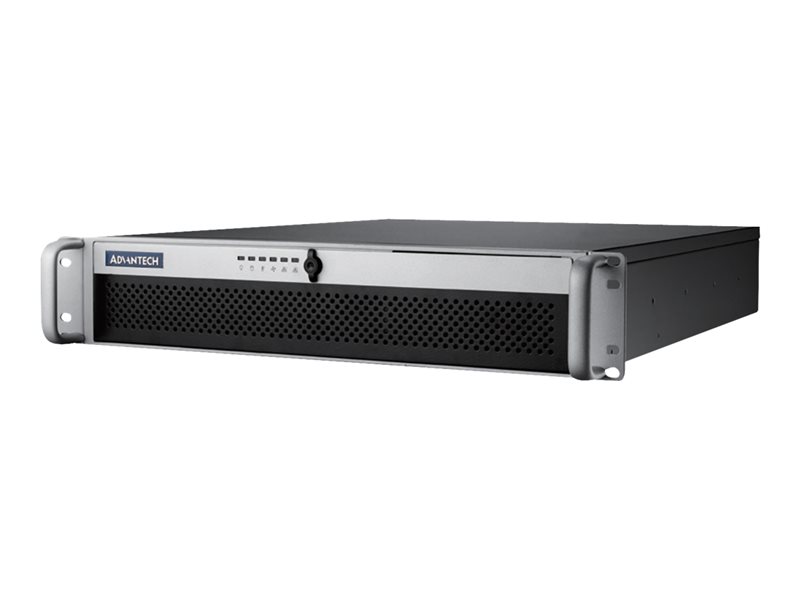

Advantech - Advantech HPC-7242
Rack-mountable - 2U - ATX - no power supply - USB
Advantech
HPC-7242MB-00XE
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Advantech HPC-7242 - rack-mountable - 2U - ATX |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 2U |
| Built-in Devices | Intelligent System Module |
| I/O Connectors | 2 x USB 3.0 ¦ 2 x serial |
| Supported Motherboards | ATX, microATX |
| System Cabinet Features | Front access fan |
| Power Device | No power supply |
| Dimensions (WxDxH) | 42.64 cm x 52.5 cm x 8.8 cm |
| Weight | 13.7 kg |
| General | |
| Form Factor | Rack-mountable - 2U |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX |
| Internal Bays Qty | 2 |
| Front Accessible Bays Qty | 4 |
| Built-in Devices | Intelligent System Module |
| Cooling System | Front: 80 mm fan x 1 / 47 cfm ¦ Internal: 60 mm fan x 2 / 28 cfm |
| System Cabinet Features | Front access fan |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" shared ¦ 1 (total) / 1 (free) x internal - 2.5" |
| Interfaces | 2 x USB 3.0 ¦ 2 x serial - DB-9 |
| Miscellaneous | |
| Included Accessories | Rear I/O panel |
| Power | |
| Power Device | No power supply |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 42.64 cm |
| Depth | 52.5 cm |
| Height | 8.8 cm |
| Weight | 13.7 kg |
