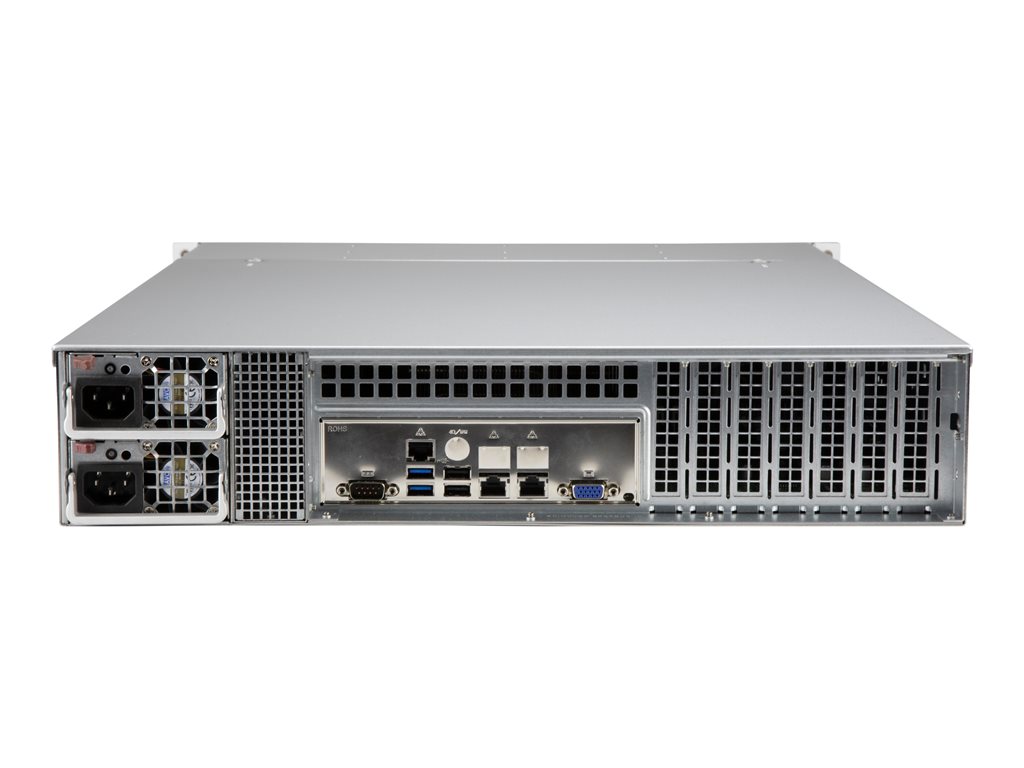

Super Micro Computer - Supermicro CSE LA26E1C4-R609LP
Rack-mountable - 2U - enhanced extended ATX - SATA/SAS/NVMe 650 Watt - black - OEM
Super Micro Computer
CSE-LA26E1C4-R609LP
0672042384402
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Supermicro CSE LA26E1C4-R609LP - rack-mountable - 2U - enhanced extended ATX |
| Product Type | System cabinet |
| Form Factor | Rack-mountable - 2U |
| Color | Black |
| Built-in Devices | LED panel |
| Supported Motherboards | ATX, Extended ATX, enhanced extended ATX |
| Server Storage Bays | SATA/SAS/NVMe |
| Power Device | Power supply 650 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 43.7 cm x 64.7 cm x 8.9 cm |
| Pricing Type | OEM |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Form Factor | Rack-mountable - 2U |
| Max Mainboard Size | Enhanced extended ATX |
| Supported Motherboards | ATX, Extended ATX, enhanced extended ATX |
| Internal Bays Qty | 12 |
| Server Swappable Drive Interface | SATA/SAS/NVMe |
| Built-in Devices | LED panel |
| Color | Black |
| Cooling System | 80 mm fan x 3 / Pulse-width modulation (PWM) support |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x internal - 2.5" / 3.5" shared |
| Expansion Slots | 7 x low-profile |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - labor - 3 years ¦ Limited warranty - parts - 1 year |
| Miscellaneous | |
| Included Accessories | SAS / SATA backplane |
| Compliant Standards | BSMI, CCC, FCC, RoHS, REACH, CE/EMC |
| Pricing Type | OEM |
| Power | |
| Power Device | Power supply |
| Power Redundancy | Yes |
| Installed Qty | 1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 650 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 43.7 cm |
| Depth | 64.7 cm |
| Height | 8.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 61 cm |
| Shipping Depth | 61 cm |
| Shipping Height | 22.9 cm |
| Shipping Weight | 16.78 kg |
