Fluke - Fluke DSX CableAnalyzer DSX2-8000MI
Network tester kit with 1 Year Gold Support - Europe
Fluke
DSX2-8000MI/G INT
0754082143895
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Fluke DSX CableAnalyzer DSX2-8000MI - network tester kit |
| Device Type | Network tester kit |
| Cable Types | CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a, CAT8 |
| Tests, Tools and Measurements | Length, wiremap, propagation delay, delay skew between pair, DC loop resistance, insertion loss (attenuation), return loss, attenuation-to-crosstalk ratio far end, power sum |
| Features | Headset connection, Wi-Fi for access to test results, USB connectivity, 2-way autotest, 1-year calibration period |
| Display | 5.7" |
| Country Kits | Europe |
| Manufacturer Warranty | 1 year |
| Included Service | 1 Year Gold Support |
| General | |
| Device Type | Network tester kit |

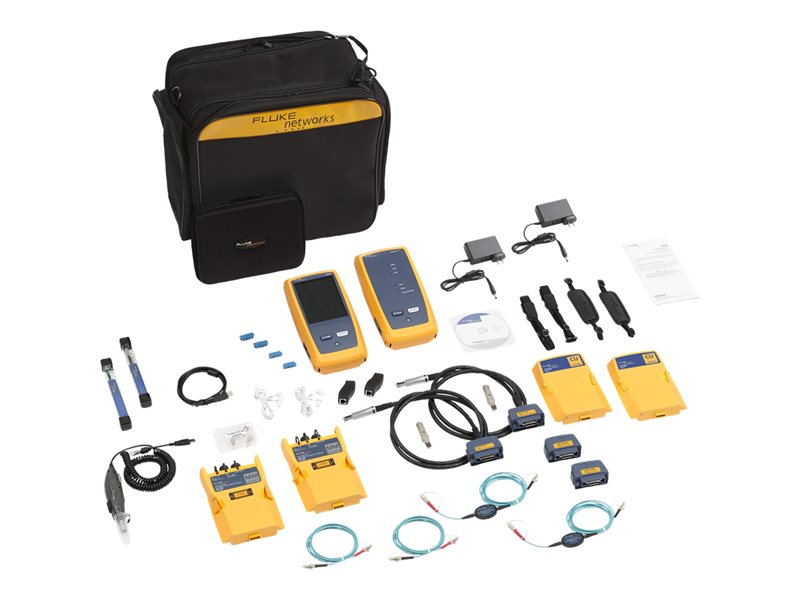

| Kit Content | Versiv Mainframe, Versiv Remote, 2 x DSX-8000 CableAnalyzer Module, 2 x CertiFiber Multimode MM OLTS Module |
| Media | Copper |
| Features | Headset connection, Wi-Fi for access to test results, USB connectivity, 2-way autotest, 1-year calibration period |
| Tests, Tools and Measurements | Length, wiremap, propagation delay, delay skew between pair, DC loop resistance, insertion loss (attenuation), return loss, attenuation-to-crosstalk ratio far end, power sum |
| Cable Types | CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6a, CAT8 |
| Software | Versiv Open Source Software |
| Included Accessories | CAT 8/Class I permanent link adapters set, CAT 8/Class I channel adapters set, 2 x headsets, 2 x hand straps, 2 x shoulder straps, carrying case, USB interface cable, 2 x universal couplers, 2 x AxTalk terminators, USB fiber inspection video probe with 4 tips, 2 x Quick Clean Cleaners (1.25/2.50 mm), 2 x LC/LC simplex adapters, SC/LC EF-Compliant MM TRC Kit 50 µm, TRC Carry Case |
| Cables Included | 1 x USB cable ¦ 2 x RJ-45 coupler |
| Connectors | RJ-45 |
| Compliant Standards | EN 61326-1 |
| Test Standards | TIA-568-C.2 |
| Country Kits | Europe |
| Warranty | 1 year |
| Included Service | 1 Year Gold Support |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Min Storage Temperature | -10 °C |
| Max Storage Temperature | 60 °C |
| Humidity Range Operating | 0 - 90% |
| Drop Specification | 1 m |
| Max Altitude Operating | 4000 m |
| Display | |
| Diagonal Size | 5.7" |
| Technology | LCD |
| Color Support | Color |
| Features | Touchscreen |
| Battery | |
| Technology | Lithium ion |
| Voltage | 7.2 V |
| Run Time (Up To) | 8 hour(s) |
