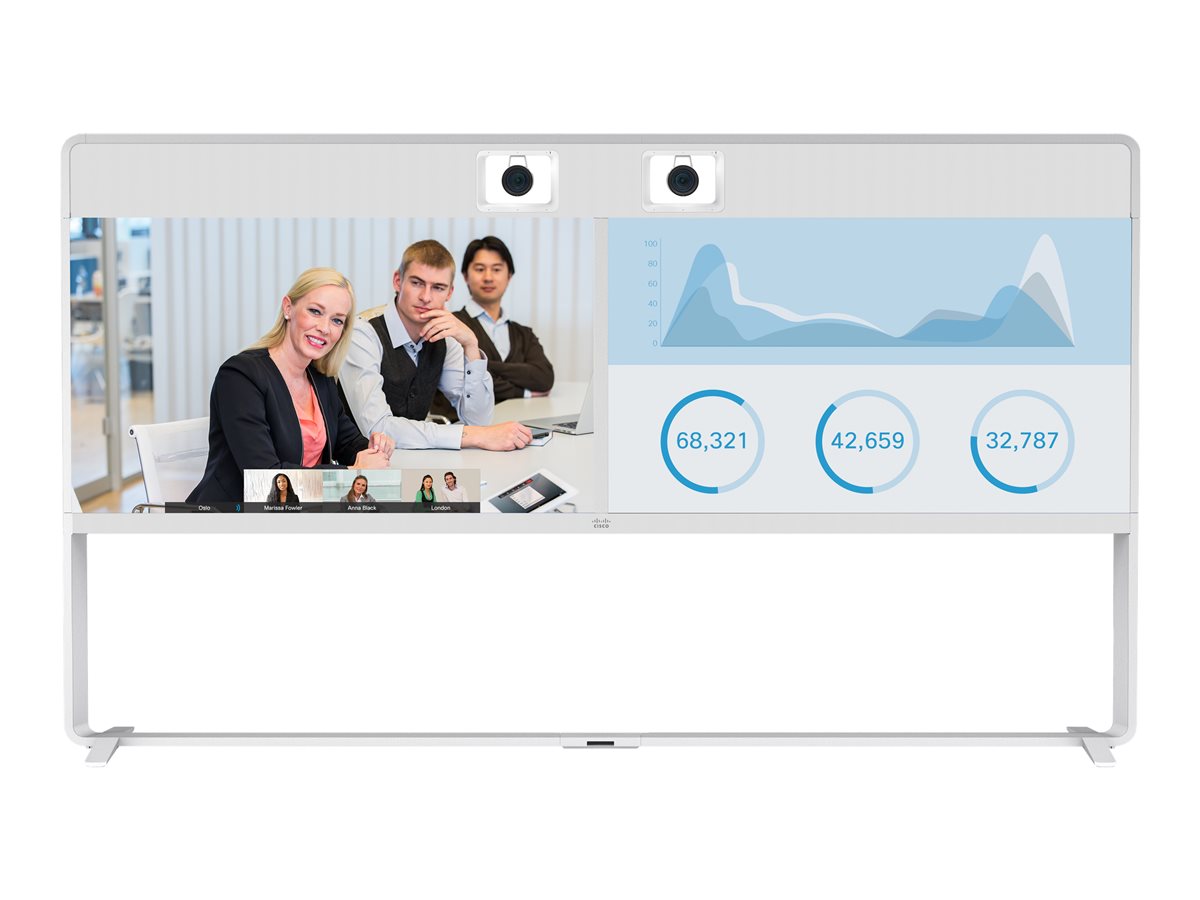

Cisco - Cisco Spark MX800
Video conferencing kit
Cisco
CS-MX800D-2CAM-K9
N/A
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | Cisco Spark MX800 - video conferencing kit |
| Device Type | Video conferencing kit |
| VoIP Protocols | SIP |
| Codec | H.261, H.263, H.263+, H.264, G.711, G.722, G.722.1 |
| Display | 70" TFT / 1920 x 1080 |
| Number Of Screens | 2 |
| Max Transfer Rate | 10 Mbps |
| Digital Signaling Protocol | H.323, H.239, H.460, H.245 |
| Data Compression Protocol | H.261, H.263, H.264, H.263+, H.350, H.235 ver 3 |
| Features | Auto gain control, echo cancellation |
| Video Input | Digital video camera |
| Video Output | Codec board - 1920 x 1080 |
| Audio Input | Microphone |
| Audio Output | Speaker(s) - stereo |
| Input Device | Touchscreen, microphone (wired) |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 120/230 V (50/60 Hz) |
| Manufacturer Warranty | 90-day warranty |
| General | |
| Device Type | Video conferencing kit |
| VoIP Protocols | SIP |
| Voice Codecs | G.711, G.722, G.722.1 |
| Video Codecs | H.261, H.263, H.263+, H.264 |
| Quality of Service | IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p |
| Network Protocols | HTTP, HTTPS |
| Expansion / Connectivity | |
| Interfaces | 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 3 x display / video - HDMI input - 19 pin HDMI Type A ¦ 1 x display / video - composite video/S-video input - BNC x 2 ¦ 2 x network - RJ-45 ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 8 x microphone - input ¦ 4 x audio - balanced input ¦ 6 x audio - balanced output ¦ 2 x management - RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x display / video - DVI-Analog/Digital input - 24+5 pin combined DVI ¦ 1 x display / video - DVI-Analog/Digital output - 24+5 pin combined DVI |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 90 days |
| Miscellaneous | |
| Cables Included | 1 x HDMI cable ¦ 1 x DVI-VGA cable ¦ 1 x network cable |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-07, Directive 2004/108/EC, Directive 2006/95/EC, RoHS 2011/65/EU |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, NTP, DHCP, DNS |
| Features | Flow control, LDAP support, VLAN support, DiffServ support, IPv6 support, Quality of Service (QoS), SSH support, IPv4 support, Class of Service (CoS) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Performance | Bandwidth: 10 Mbps |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 447 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% |
| Modem | |
| Max Transfer Rate | 10 Mbps |
| Digital Signaling Protocol | H.323, H.239, H.460, H.245 |
| Data Compression Protocol | H.261, H.263, H.264, H.263+, H.350, H.235 ver 3 |
| Features | Auto gain control, echo cancellation |
| Display | |
| Number Of Screens | 2 |
| Technology | TFT active matrix |
| Diagonal Size | 70" |
| Native Resolution | 1920 x 1080 |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 350 cd/m² |
| Image Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Video Input | |
| Type | Digital video camera (color) - external |
| Digital Video Capture Resolution | 1920 x 1080 |
| Audio Output | |
| Type | Speaker(s) |
| Sound Output Mode | Stereo |
| Audio Input | |
| Type | Microphone - integrated |
| Input Device | |
| Type | Touchscreen, microphone |
| Connectivity Technology | Wired |
| Video Output | |
| Type | Codec board |
| Max External Resolution | 1920 x 1080 |
| Supported Display Graphics | HDTV (1920x1080), HD (1280 x 720) |
| Analog Video Signal | Composite video (NTSC, PAL) |
| Digital Video Standard | Digital Visual Interface (DVI), High-Definition Multimedia Interface (HDMI) |
