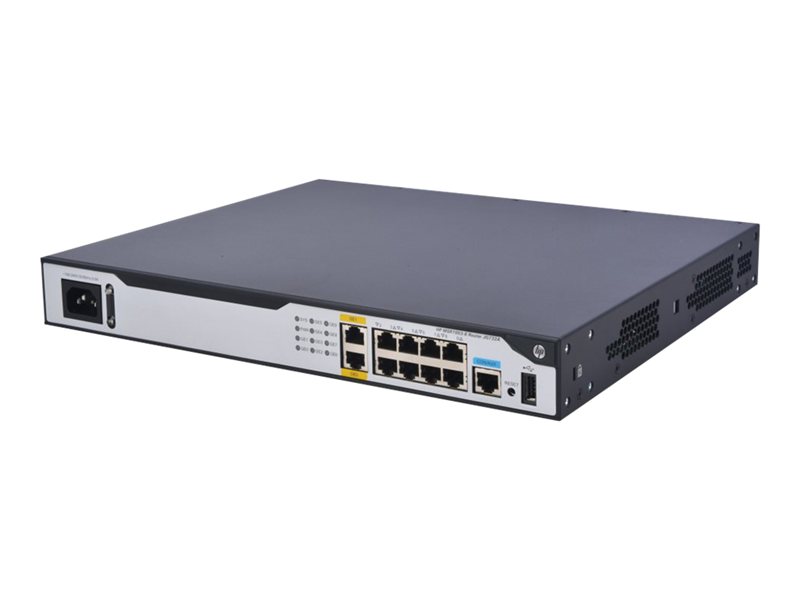

Hewlett Packard Enterprise - HPE MSR1003-8
Router - 8-port switch - GigE - WAN ports: 2
Hewlett Packard Enterprise
JG732A#ABA
0887758609910
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE MSR1003-8 - router - desktop |
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop - 1U |
| WAN Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Throughput: 500 Kpps ¦ Routing/switching capacity: 160 Mbps |
| Capacity | IPv4 routing table entries: 1000 ¦ IPv4 forwarding table entries: 1000 |
| Network / Transport Protocol | TCP/IP, L2TP, RSVP, NTP, PPPoE |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, SSH, CLI |
| Features | Firewall protection, DHCP support, NAT support, VPN support, NAPT support, ARP support, MPLS support, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 36 cm x 30 cm x 4.2 cm |
| Localization | English / United States |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Throughput: 500 Kpps ¦ Routing/switching capacity: 160 Mbps |
| Capacity | IPv4 routing table entries: 1000 ¦ IPv4 forwarding table entries: 1000 |
| Network / Transport Protocol | TCP/IP, L2TP, RSVP, NTP, PPPoE |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, SSH, CLI |
| Encryption Algorithm | MD5, TLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Firewall protection, DHCP support, NAT support, VPN support, NAPT support, ARP support, MPLS support, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, EN55022 Class B, ICES-003 Class B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, ANSI C63.4-2003, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EN 55024:1998+A1:2001+A2:2003 |
| Processor | 1 x Atom 4 GHz |
| RAM | 512 MB DDR3 SDRAM |
| Flash Memory | 256 MB |
| Expansion / Connectivity | |
| Interfaces | LAN: 8 x RJ-45 ¦ WAN: 2 x RJ-45 ¦ Management: 1 x RJ-45 ¦ USB 2.0: 1 x |
| Expansion Slots | 3 (total) / 3 (free) x Smart Interface Card (SIC) ¦ 1 (total) / 1 (free) x Double Smart Interface Card (DSIC) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| Localization | English / United States |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 30 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Dimensions & Weight | |
| Width | 36 cm |
| Depth | 30 cm |
| Height | 4.2 cm |
